Supply of carbon fiber tube Printing Machine Beam Carbon fiber Filament Wound.

Product features:

Ø tensile strength is 8 to 10 times more than ordinary steel.

Ø light weight, only 1/5 of the steel

Ø good electrical conductivity.

Ø has excellent corrosion resistance and impact resistance performance.

Specification

Carbon fiber winding of molding process

1. The wet winding Wet winding is fiber cluster (yarn belt), glue, directly under tension control winding

onto the mandrel.The advantages of wet winding for: (1) 40% lower cost than dry winding;(2) the product

has good air tightness, because of the winding tension to squeeze bubbles, the excess resin adhesive

liquid and fill gaps;(3) fiber arrangement good parallelism;(4) the wet winding, fiber resin adhesive

solution, can reduce the fiber abrasion;5. High efficiency (up to 200 m/min).Wet winding faults as follows:

(1) resin waste is big, poor operating environment;(2) gel content and quality of the finished product is

not easy to control;(3) less available for wet winding resin varieties.

2. half dry winding After half dry winding is fiber rubber, en route to the winding to the mandrel, increases

a set of drying equipment, solvent to remove from the rubber yarn, compared with the dry method,

dispense with presoak glue process and equipment;Compared with wet method, can make the products

in the bubble content is lower.Three methods of winding, wet winding used in the most common;Dry

winding is used only for high performance and high precision of cutting-edge technology.

The advantages of the fiber winding (1) can be according to the stress of the product design winding,

can give full play to the strength of the fiber;(2) than high strength: generally speaking, a filament wound

pressure vessels with volume, compared with pressure of steel container, the weight can reduce 40 ~ 60%;

(3) high reliability: filament winding is easy to realize mechanization and automation of production,

process condition is determined, put out the product quality is stable and accurate;(4) high efficiency:

the mechanized or automated production, need operation workers less, winding speed (240 m/min),

therefore, high labor productivity

Display

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

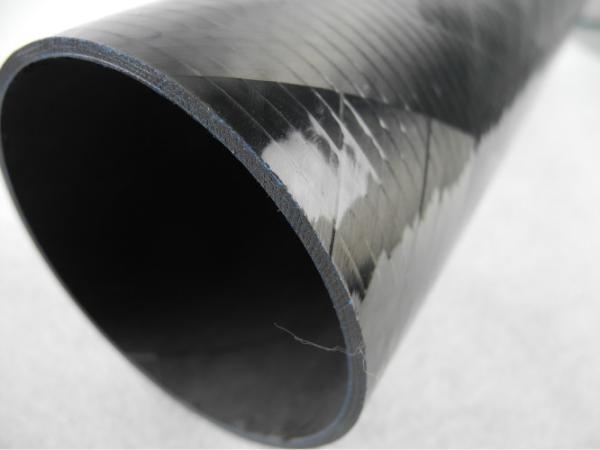

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.

‘Customers’ Persuit for Change, Lijin’s Motivation for Growth’, Shanghai Lijin takes customers’ demand for center, enhances the
customer satisfaction, and grows with customer.
