Higth quality Carbon Fiber CNC Service 3K Twill Matte Multicopter frames OEM CNC.

Introduction

There are many subclasses in these directories need further elaboration.Such as different carbon fiber

stripe to produce different components and final product performance.In order to create a carbon fiber

part of tensile and compression are tough, needs a stable internal structure building foundation and to

maintain its shape.Epoxy resin is a kind of good compressive strength and deformation of the excellent

material, is often used to form the structure made of carbon fiber in the structure reinforcement.As the

density of resin small accordingly Light can be used to create the quality of parts and very strong.When

making a components can use many different ways, including wet stack coating, vacuum bag molding

pressure, resin transfer, matching mould, insert molding, pultrusion and many other ways.In addition, the

choice of different resin can produce different performance.

Largest size 500mm×600mm.

MOQ:1-5Pcs.

CNC Machine type: High speed router for PCB machining, 40000RPM.

Specification

Application

1. Manufacture fixtures and tooling
2. Industrial automation and robotics

3. Sports equipment
4. Musical instruments
5. Scientific apparatus

Material characteristic: high quality carbon fiber plate carbon sheet .
- 1. Filtration material under high temperature and for caustic liquid.
- 2. Electric conduct material, electrode.
- 3. High strength , lighter weight ,imported raw materail from taiwan and japan

Carbon fiber CNC machining

CNC is a kind of by process control automation of machine tools, through the computer to decode, make

the machine to perform prescribed actions, through the tool cutting blank material processed into

semi-finished products production parts.
On the aircraft, accurate precision of parts is very important, the wings of any surface defects of mav flight

performance and control performance have a big impact, CNC processing technology is used to more

precision mechanical parts.
What are the advantages of the CNC processing: it is standardized, is beneficial to realize commercial

production, reducing production cost and shorten the production preparation period;Second, motors, the

accuracy of mechanical products is higher and higher, the CNC machining center fixture accuracy

requirement also more and more high;Three is efficient, highly efficient fixture can reduce processing

time, improve labor productivity, reduce labor intensity;Four is flexible, adaptable flexibility is similar to that

of a machine tool, through the adjustment and combination way, improve the adaptability to process

variables, better meet the modern machinery industry the needs of the many varieties, small batch

production.

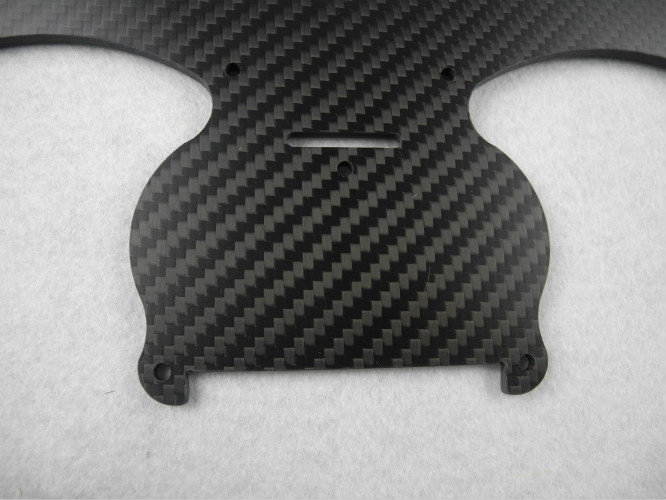

***Pictures shown above are only to display the carbon fiber CNC capability,experience and Quality from LijinCarbon.
LijnCarbon will NOT disclose or share any drawings or product detail to third parties.

Display

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.

‘Customers’ Persuit for Change, Lijin’s Motivation for Growth’, Shanghai Lijin takes customers’ demand for center, enhances the
customer satisfaction, and grows with customer.
