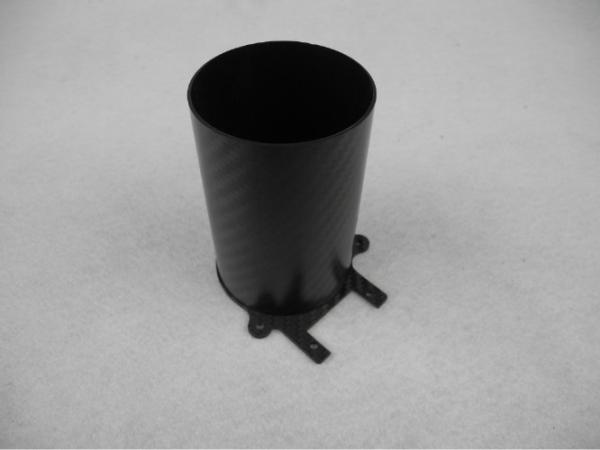

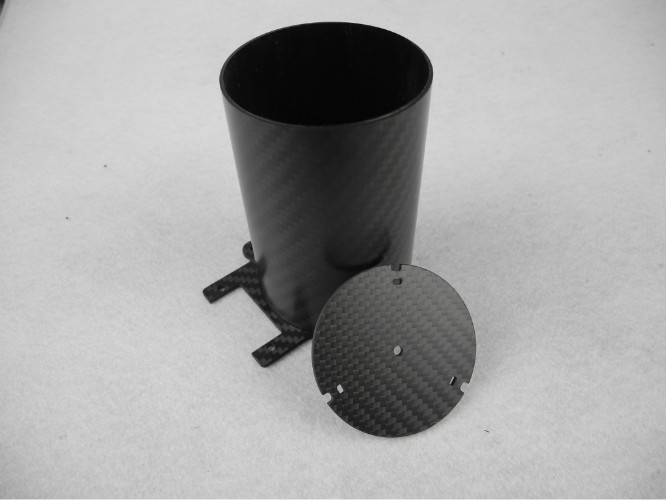

Various sizes customized processing Full Carbon Fiber Tube and Plate Glued Parts.

Introduction

This company specialized production, customized: all kinds of carbon fiber medical bed board, carbon fiber

tubes, Carbon Fiber Tube sheet, all kinds of carbon fiber molding, vacuum forming products.Can according to

the requirements of customers design, development, production.Products are widely applied to

aerospace, military industry, style, medicine, machinery, electronics, construction, etc.
1. thickness: 0.5 mm, 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 3.0 mm, 3.5 mm, 4.0 mm, etc.;
2. color: black, silver, etc., according to the international color card number color;
3. regular pattern: 1 k, 3 k, 6 k...Plain/Twill;
4. surface smooth, clear texture, high strength, light weight, corrosion resistance.
This product features:
This product USES the Carbon Fiber Tube as raw materials;
This product is tensile, compressive performance;
This product has excellent corrosion resistance;
This product is waterproof properties;
This product is fireproof performance, Carbon Fiber Tube for high temperature above 130-250 degrees in the fire,

so this product for the average case of flame has strong protection ability;
The product high strength, strength is equal thickness steel 6 times.

Specification

The three major advantages

The advantage of hardness and strength:
Tensile strength, tensile strength of carbon fiber, which is about 10 times of steel.
Stability, high fatigue strength: carbon fiber structure made of composite material, after stress fatigue

millions of times of cycling test, its strength retention rate is 60%, and steel is 40%, aluminium is 30%, the

glass fiber reinforced plastic has only 20% to 25% so design products from the safety coefficient, carbon

fiber composite material to a minimum.
Elastic modulus, carbon fiber composite materials tensile elastic modulus is higher than steel, but the

aramid fiber and glass fiber composite materials tensile elastic modulus is only half of the steel and a

quarter.
Fatigue strength, fatigue strength of carbon fiber and aramid fiber composites is higher than Gao

Jianggang silk.Metal materials under the action of alternating stress, the fatigue limit is only 30% ~ 40% of

the static load strength.Complex or because the fiber and matrix can be moderate crack extension, the

possibility of internal force redistribution and existing fiber composite materials fatigue limit is higher,

about 70% ~ 80% of the static load strength, and there are signs of deformation significantly before

destruction.
The advantage of the physical properties:
Weight: about one 5 of the steel.
Compared with the carbon fiber plate: carbon fiber sheet can stick on the surface structure of various

shapes, rules of sheet and more suitable for the component surface.In addition, due to the paste board

when the amount of the underlying resin than sheet material, thickness, and the concrete interface

bonding strength of the sheet.
Good thermal conductivity, the thermal conductivity of the inorganic and organic materials are usually

poor, but the thermal conductivity of the carbon fiber is close to the steel.Use of this advantage can be

used as a solar collector shell material of thermal conductivity of materials, heat evenly.

Display

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.

‘Customers’ Persuit for Change, Lijin’s Motivation for Growth’, Shanghai Lijin takes customers’ demand for center, enhances the
customer satisfaction, and grows with customer.
