Engineering-Grade Durable Woven Finish Roll Wrapped Carbon Fibre Tubes

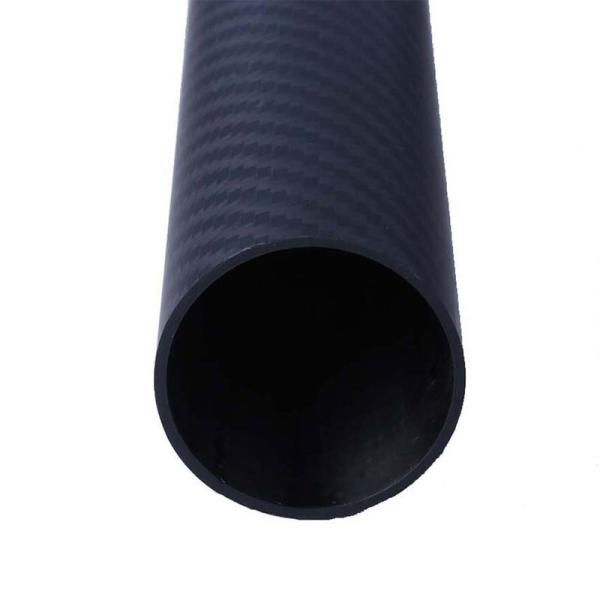

At LIJIN we pride ourselves on our huge range of engineering-grade carbon fibre tubes which includes these great-looking woven finish roll-wrapped carbon fibre tubes. Tubes in this range are manufactured using the roll-wrapping process using 100% high-strength carbon fibre reinforcement for excellent 'real-world' multi-axis strength but they are finished with an attractive 2x2 twill carbon fabric for that classic carbon fibre appearance resulting in tubes that look as good as they perform. These tubes are suitable for a wide range of applications including UAVs, quad-copters, aero-modeling, camera rigs, tripods, automation, leisure equipment, motor-sport, and much more.

Roll-wrapped carbon fibre tubes are manufactured by wrapping multiple layers of prepreg carbon fibre reinforcement around a metal mandrel which is wrapped with shrink tape and cured at high temperature. Because the reinforcement is wrapped in layers around the mandrel, it is possible to alternate the alignment of the carbon fibre between layers, enabling roll-wrapped tubes to have longitudinal stiffness down their length, as well as strength in the 'hoop' direction, making them more resilient to crush, burst and torsional fracture. We have a video tutorial demonstrating the roll-wrapping process here.

This round tubing is comprised of Carbon Fiber Braid and Unidirectional Fabrics. This product is ideal for building lightweight frames and structures such as trusses. Our Carbon Fiber square tubing has been engineered to be much stronger under torsional and side loading than pultruded tubing.

Our tubing is also significantly lighter than pultruded tubing. Our carbon fiber square tube has been designed so that the unidirectional layers are captured in a sandwich structure, eliminating longitudinal cracking and splitting. The finish on this product is different from our other product lines. These square tubes show the texture of the carbon fiber braid with a wet shiny appearance.

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.

‘Customers’ Persuit for Change, Lijin’s Motivation for Growth’, Shanghai Lijin takes customers’ demand for center, enhances the
customer satisfaction, and grows with customer.
