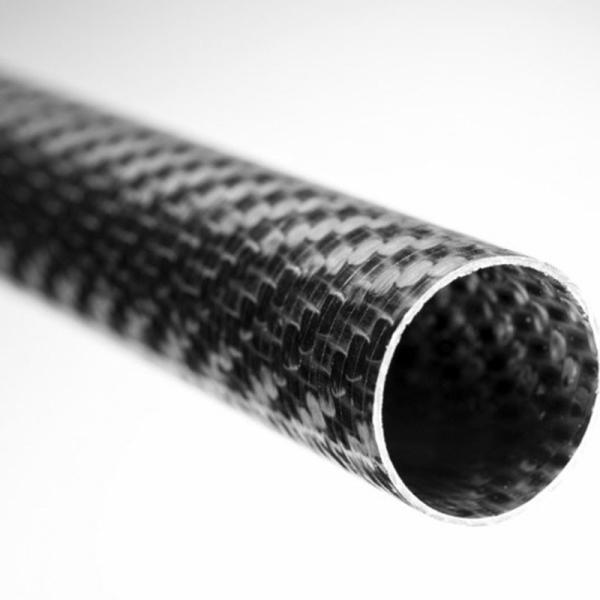

    Lightweight 3K Woven Carbon Fiber Tubes Aging Resistant Flexible

    Ask Lasest Price
    Brand Name : Tanku
    Model Number : OEM
    Certification : SGS, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1500pcs month
    Delivery Time : 7 working days after receiving Order Pay
    • Product Details
    • Company Profile

    Lightweight 3K Woven Carbon Fiber Tubes Aging Resistant Flexible

    Light Weight Aging Resistant Flexibility 3K Woven Carbon Fiber Tubes


    Carbon fiber tubes are made with a high-strength plastic composite that’s both stiff and lightweight. They conduct heat and electricity and offer excellent machinability. They are commonly used in applications that require high strength-to-weight and high stiffness-to-weight applications in aerospace, military structures, robotics, and manufacturing fixtures and sports equipment.


    These woven carbon fiber tubes, also known as CF or graphite fiber, provide high stiffness, high tensile strength, low weight, high chemical resistance, high-temperature tolerance, and low thermal expansion. They are commonly used when building frames and structures and are also used for sporting equipment, automobiles, bicycles, and boats.


    Tensile Strength Rating: Good
    Impact Strength Rating: Excellent
    Plastic Hardness Rating: Medium
    UV Tolerant: No


    Features:

    • Lightweight with a super low density of only 1.5 compared
    • with 1.95 of fiberglass composite, 2.7 of aluminum and 7.85 of steel. It’s no more than 1/5 of steel.
    • Super strength, it’s 5 times that of steel.
    • Corrosion-resistant.anti-acid,anti- alkali,never rust.it’s more excellent than stainless steel.
    • UV-resistant, durable with a long lifetime.
    • Pretty weak thermal conductivity
    • Resistance to a super high temperature above 2000 degrees.
    • X-ray transparency
    • Non-magnetic electromagnetic
    • Strength of extension is above 3500MPa,7 to 9 times of steel.
    • Specific strength is above 2000, compared with 59 of steel.
    • Specific modulus is also higher than steel.
    • Superior dimensional stability. It swells scarcely.
    • Eco-friendly

    Applications:

    • Automotive
    • Light Aircraft Tubing
    • Construction
    • Duct rod / Fish rods
    • Aerospace Instrument & Interior Supports
    • Photography & Sound Booms
    • Outer Space & Terrestrial Antennae Supports
    • Corrosion Resistant Equipment Marine
    • Sporting Goods
    • Robotic Arms & Supports
    • Advertising Panels
    • Lifting Spars
    MaterialLight Weight Carbon Fiber Tube
    ShapeRound/Oval
    TechnologyRoll-wrapped or pultrusion
    DimensionThe existing inner diameter of the mold is 4mm-50mm with a length of 1m.
    Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
    SurfaceBlack glossy/matte surface/painted
    Glossy 3k weave/matte 3k weave
    Color metal wire weave
    Featurelightweight, high strength
    Working TemperatureUsually, -30-120 degrees, if special requirement, please let us know.
    Place Of OriginChina
    FunctionMarine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
    ToleranceDiameter Tolerance: +/-0.1mm
    Length Tolerance+/-1mm
