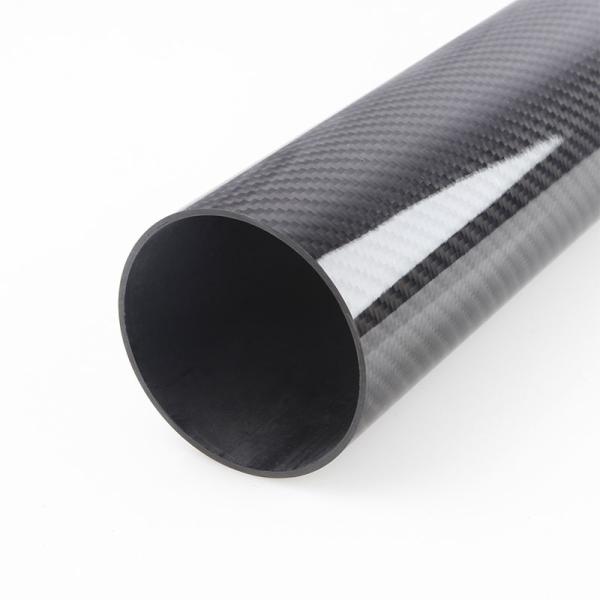

Lightweight 16mm (14mm) Woven Finish Roll Wrapped Carbon Fibre Tube

Carbon Fiber 16MM Tube Description:

High strength roll wrapped carbon fibre tube with a glossy, woven carbon fibre finish making them a great choice for a huge range of both structural and cosmetic applications including drones, UAVs, camera rigs, automation, tripods, lightweight structures, and much more.

This tube has an outside diameter (OD) of 16mm and an inside diameter (ID) of 14mm, resulting in a 1mm wall thickness, and is manufactured using alternating layers of high strength unidirectional carbon fibre running length-ways down the tube for stiffness and at 90° around the tube to provide hoop strength and resilience to crushing, burst and torsional loads. Externally the tube is finished with a smooth, UV stable clear coat showing off the classic appearance of its 2x2 twill woven carbon fibre outer layer.

With the classic appearance of 2/2 twill carbon fibre coupled with 100% roll-wrapped prepreg carbon fibre construction, these remarkable tubes look as good as they perform.

The tube listed on this page has an outside diameter of 16mm and an inside diameter of 14mm meaning that it has a wall thickness of 1mm.

16mm outside diameter is one of the most common sizes for quadcopter/multicopter arms and so compatible with a range of existing saddle-type fittings.

This diameter tube is ideally suited to a wide range of applications such as radio controlled models, UAVs, quadcopters/multi-rotors, recreational equipment, sporting goods, robotics, and photography/video equipment (tripods, etc.).

How do buy carbon fiber tubes from us?

If you want to buy a carbon fiber tube, please include ID, OD, length, dimensional tolerances, quantity, structural requirements, surface finish, surface pattern, material (if you know), temperature requirements, processing technology, etc. According to these points, we can easily and quickly quote you the price.

1. How is the diameter of your tubes measured?
Except for pultruded tubes (diameter measured from outside), all DragonPlate tube diameters are measured from the inside of the tube (ID). To determine the approximate outside diameter, add 2x the wall thickness to the ID measurement.

2. What finish options do you offer for your tubes?
Finish options include gloss, natural, textured, and tooled, depending on tube type. Please see each tube type for finish options. We also offer a sanded finish upon request. Contact us for more details.

3. How do you recommend cutting DragonPlate carbon fiber tubes? Is there any safety gear that I should use?
DragonPlate carbon fiber tubes are pre-cut to the specified lengths or slightly oversized. The tubes are easily cut to length using a bandsaw, coping saw, or Dremel tool. Recommended precautions include wearing safety glasses, a dust respirator, and protective clothing when cutting, sanding or drilling, to limit exposure to the dust, which is an irritant.

4. Do you offer custom cutting of your carbon fiber tubes?
Yes! We can custom cut our carbon fiber tubes to your specified length. Contact us for details.

Carbon Fiber Tubes diameter specifications:

Outer diameter x Inner diameter:

Further Information

Appearance

This 3K Woven Finish tube is manufactured from alternating layers of unidirectional prepreg carbon fibre for maximum strength with the final layer swapped for 2/2 twill, 3k woven carbon fibre so that the tube has the classic appearance of woven carbon fibre (exactly the same as our carbon fibre sheets for example). This means that although the tubes are designed for demanding mechanical applications, they also look fantastic, adding a cutting-edge carbon fibre appearance to any application.

To achieve the smooth, glossy appearance the tubes are surface ground, lacquered (with high-gloss UV resistant lacquer) and then polished. The end result is a carbon fibre tube of unrivalled visual appearance making it ideally suited for use in applications where it will be seen.

Performance

Although specially laminated, ground, lacquered, and polished to produce a carbon fibre tube with a stunning appearance, our 10mm 3K carbon fibre tubes are serious tubes suitable for demanding engineering applications including robotics/automation, R/C models, UAVs, recreational equipment, motorsport, and marine.

How to Cut and Shape

This carbon fibre tube can easily be cut and finished using simple workshop tools like a hacksaw and some wet-and-dry paper. Cutting and finishing a carbon fibre tube can also be perfectly safe if you follow some basic safety precautions.

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.
