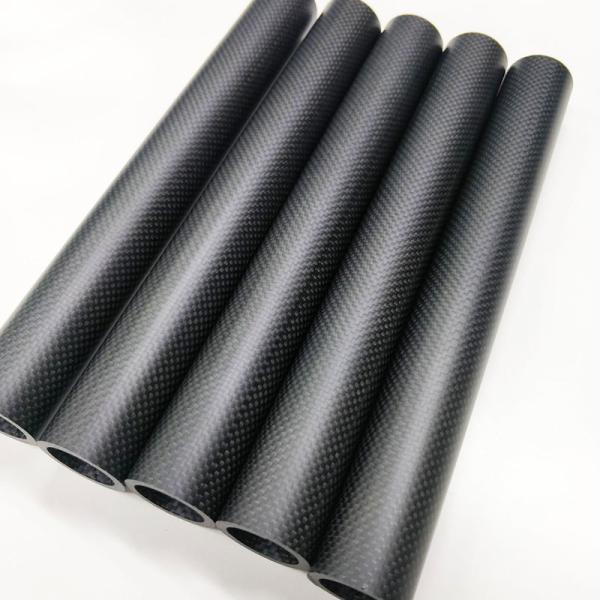

    Electromagnetic Rolling Wrapped Carbon Fiber Tube 12mmx10mm

    Ask Lasest Price
    Brand Name : Tanku
    Model Number : OEM
    Certification : SGS, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1500pcs month
    Delivery Time : 7 working days after receiving Order Pay
    • Product Details
    • Company Profile

    Electromagnetic Rolling Wrapped Carbon Fiber Tube 12mmx10mm

    Specialized Production High Strength Carbon Fiber Rolling Wrapped Tube Poles


    Carbon Fiber Rolling Wrapped Tube Poles Description:


    A roll-wrapped carbon tube is manufactured by wrapping unidirectional carbon fiber prepreg tape around a mandrel with the majority, but not all, of the carbon fiber running longitudinally. This type of construction offers a higher strength-to-weight ratio than is available in pultruded tubes. Typically used where thin-walled, lightweight tubes are required to provide additional torsional stiffness and high strength.


    This carbon fiber tube uses high strength unidirectional equivalent carbon fiber core with an epoxy resin system to ensure a strong rigid tube that will meet your needs. In addition to this high-strength uni core, this tube is finished with a beautiful 2x2 twill weave carbon fiber and then given a gloss finish. Due to raw material constraints, it is hard to create pipes exactly at a specific measurement unless they are built over-sized and machined down so that is why our pipes may be a few thousandths off from the ideal measurement we are trying to match.


    LIJIN’s Carbon Fiber Uni Roll Wrapped Tubing is manufactured by wrapping carbon fiber unidirectional prepreg tape onto a mandrel in multiple layers and orientations and cured at high temperatures and pressure.


    The unidirectional layers are oriented in a 0/90 degree orientation with the majority of the fibers positioned in the longitudinal access. Fibers oriented at 90 degrees (hoop) are wrapped around the circumference to provide high crushing strength and stiffness. The fibers that run along the length, in the 0-degree direction, provide high bending strength and stiffness. This type of construction offers a high stiffness to weight ratio tube with increased bending stiffness and axial strength, a high crush resistance, and tight inner diameter (ID) tolerances.


    All of our roll wrapped tubes feature a slight rib texture spiraling along their length where shrink-tape has been used in the manufacturing process. If need be, this can easily be sanded and polished away.


    Features:

    - Light Weight – Less Density – 20% Of Steel
    - High Strength
    - High Corrosion Resistance
    - Superior Dimensional Stability
    - Consistent Cross Section
    - Lasting Performance
    - Excellent Structural Properties
    - Environmentally Safe
    - Non-Magnetic Electromagnetic
    - Ease Of Fabrication & Installation


    Applications:

    - Automotive
    - Light Aircraft Tubing
    - Construction
    - Duct rod / Fish rods
    - Aerospace Instrument & Interior Supports
    - Photography & Sound Booms
    - Outer Space & Terrestrial Antennae Supports
    - Corrosion Resistant Equipment Marine
    - Sporting Goods
    - Robotic Arms & Supports
    - Advertising Panels
    - Lifting Spars


    Product NameCarbon Fiber Rolling Wrapped Tube Poles
    Material100% Carbon Fiber
    ColorBlack or custom
    SurfaceMatt/Glossy
    SizeCustom thickness and length
    Fiber Specifications1K/3K/12K
    Weaving StylePlain/Twill
    Fiber Type1.Carbon fiber+carbon fiber
    2.Carbon fiber+ glass fiber
    3.Carbon fiber+aramid fiber
    Application1. Aerospace, RC model parts Helicopters Model
    2. Manufacture fixtures and tooling
    3. Industrial automation and robotics
    4. Sports equipment
    5. Musical instruments
    6. Scientific apparatus
    7. Medical device
    8. Others
    Our ProductCarbon fiber tube, carbon fiber plate, carbon fiber profiles.

    Electromagnetic Rolling Wrapped Carbon Fiber Tube 12mmx10mmElectromagnetic Rolling Wrapped Carbon Fiber Tube 12mmx10mmElectromagnetic Rolling Wrapped Carbon Fiber Tube 12mmx10mmElectromagnetic Rolling Wrapped Carbon Fiber Tube 12mmx10mmElectromagnetic Rolling Wrapped Carbon Fiber Tube 12mmx10mm
