High Performance Custom Durable Large Diameter Carbon Fiber Tube

A composite tube is manufactured from two or more constituent materials. Individually, these materials have significantly distinctive properties. These properties could be either physical or chemical, and when these materials have been combined by the Composite Tubes manufacturer, the result is a composite material with characteristics unconventional to that of either of the individual components. The preference for composites comes down to several reasons. It could be their lower cost, or higher strength, or even their lighter weight. One of the most primary applications for a Composite Tube is its use in structural purposes for buildings, bridges, and construction.

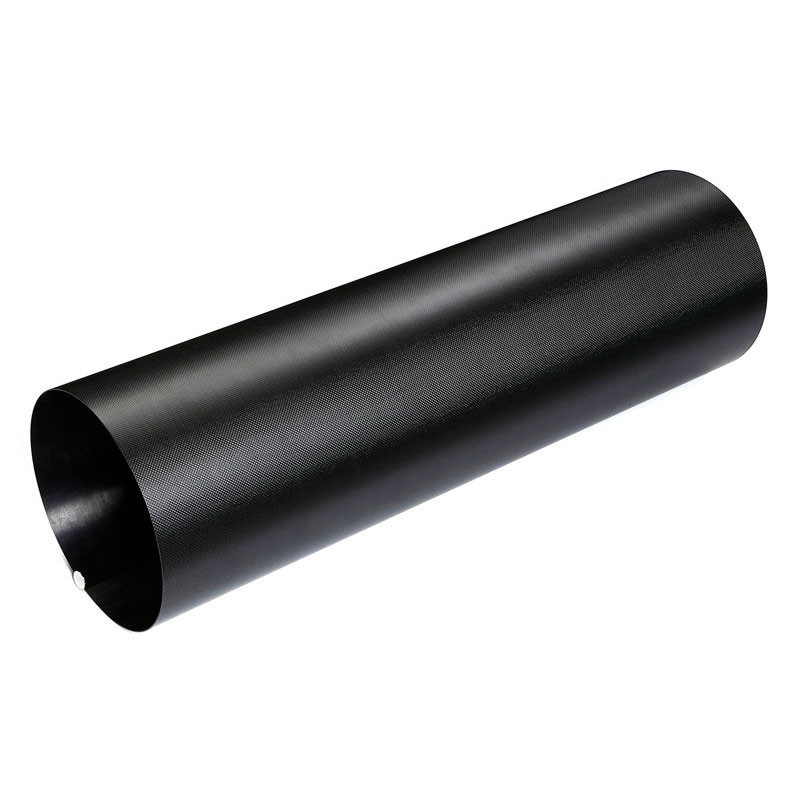

LIJIN Large Diameter Carbon Fiber Tubes

LIJIN Composite can customize high strength large diameter carbon fiber tubes with standard modulus or high modulus raw material. The diameter range of carbon fiber tubes we can supply is Min OD 5mm, Max OD 500mm.

For carbon fiber tubes surface, it can be natural cello wrap, matte or glossy you can also choose UD carbon fiber or 3K weave carbon fiber as tube surface look. We can supply a single-piece tube length of Max 6M.

Customize

Roll wrapped tube is manufactured using multiple layers of prepreg carbon fiber materials. We can customize the fiber layers according to per client's performance requirements.

Advantages

The greatest advantage of carbon fiber tubes is lightweight and high strength.

Compared with steel, the strength of carbon fiber tubes is as much as several times higher than that of steel. It can greatly reduce the weight of the tube.

As for its low density and low thermal expansivity, carbon fiber tubes can be also used for industrial equipment.

Features:

1. Made of high modulus 100% carbon fiber with epoxy resin.

2. Great replacement for the low-grade aluminum wing tubes.

3. Weighs only 1/5 of steel and is 5 times stronger than steel.

4. Low Coefficiency Of Thermal Expansion, High-Temperature Resistance.

5. Good Tenacity, Good Toughness, Low Coefficiency Of Thermal Expansion.

Application:

1. Aerospace, Helicopters Model Drone, UAV, FPV, RC Model Parts

2. Manufacture Fixtures And Tooling, Industrial Automation

3. Sports Equipment, Musical Instruments, Medical Device

4. Building Construction Repair And Strengthening

5. Car Interior Decoration Parts, Art Products

handling:
- to cut with diamond-wheel
- sealing for cuttings
- carbon-glue to stick on any surface

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.

‘Customers’ Persuit for Change, Lijin’s Motivation for Growth’, Shanghai Lijin takes customers’ demand for center, enhances the
customer satisfaction, and grows with customer.
