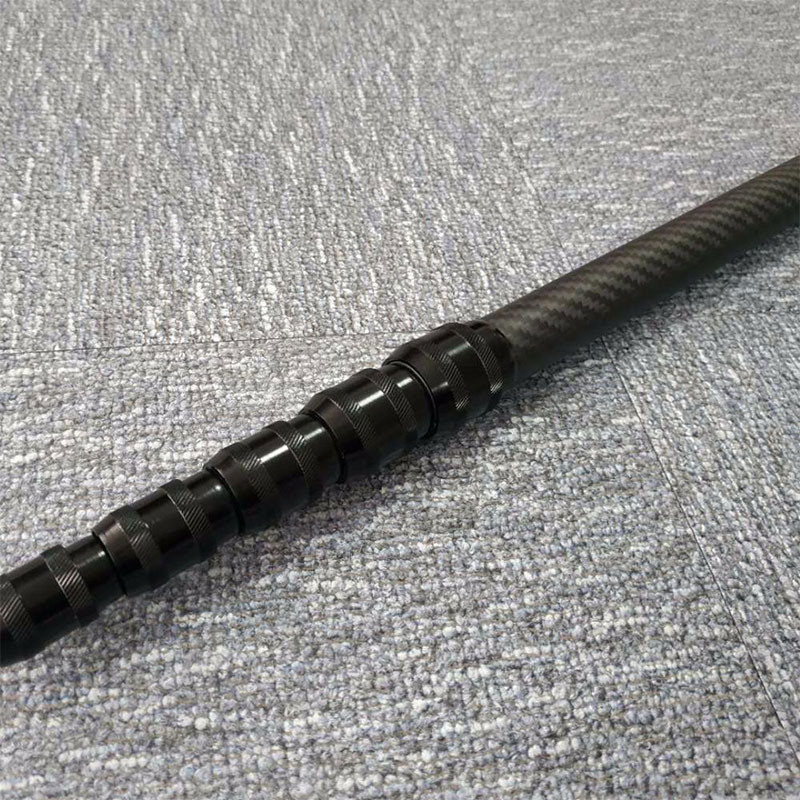

Professional Quick Clamp 100% Roll Wrapped Carbon Fiber Extendable Pole

We are offering carbon fiber telescopic pole for water-fed pole carbon fiber window cleaning pole fruit gather pole carbon fiber tube carbon fiber rod carbon fiber tube.

The extension pole is made of high-quality carbon fiber material, which is wear-resistant, durable, tough, high temperature resistant, and lightweight, owning a long using life span.

1. surface: 3k plain 3k twill
2. finish: glossy(can be customized matte or smooth or color painting)
3. material: 100% carbon fiber( can be customized)
4. od:25-55mm (can be customized )
5. thickness:1mm (can be customized)
6. extend length:5m(can be customized 2-20m)
7. contract length:1.7-2.5m(can be customized)
8. detail use: water-fed pole, window cleaning, fruit picking, etc

Advantage:

1. lightweight: its density is 1.55gcm3
2. high strength
3. good looking
4. long lifetime
5. easy to carry

Specification

Chemical properties

Carbon fiber is the carbon content is higher than 90% of inorganic polymer fiber. Carbon content is higher than 99% of graphite fiber. Carbon fiber axial strength and high modulus, creep, fatigue resistance, good heat and electrical conductivity between non-metal and metal, small thermal expansion coefficient, good corrosion resistance, low density of fiber, X-ray permeability are good. But its poor resistance to impact, easy to damage, oxidation, under the action of a strong acid and metal composite metal carbide, happens, carburizing and electrochemical corrosion phenomena. Therefore, the carbon fiber surface treatment before use must be.

Edit the period of preparation of carbon fiber can be respectively with polyacrylonitrile fiber, pitch fiber, and rayon silk or phenolic fiber made by carbide; According to the state is divided into filament, short-fiber and chopped fiber; According to the mechanical properties can be divided into general and high performance. Universal carbon fiber strength is 1 billion MPa (MPa), modulus of 100 gpa. High-performance carbon fiber is divided into high strength types (2000 mph strength, modulus of 250 gpa) and high model (modulus of 300 gpa above). Strength is greater than 4000 mpa is also known as ultra high strength type; Modulus is larger than 450 gpa are called supermodel. With the development of the aerospace and aviation industry, but also the carbon fiber with high strength and high stretch type, its elongation is more than 2%. Consumption is the largest polyacrylonitrile PAN-based carbon fiber.

Commonly used carbon fiber is mainly polyacrylonitrile carbon fiber and carbon fiber with asphalt. The manufacture of carbon fiber includes fiber spinning, thermal stabilization (oxidation), carbonization, and graphitization four processes. With the chemical change include, such as dehydrogenation and cyclization, oxidation and deoxidization.

Display

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.

‘Customers’ Persuit for Change, Lijin’s Motivation for Growth’, Shanghai Lijin takes customers’ demand for center, enhances the
customer satisfaction, and grows with customer.
