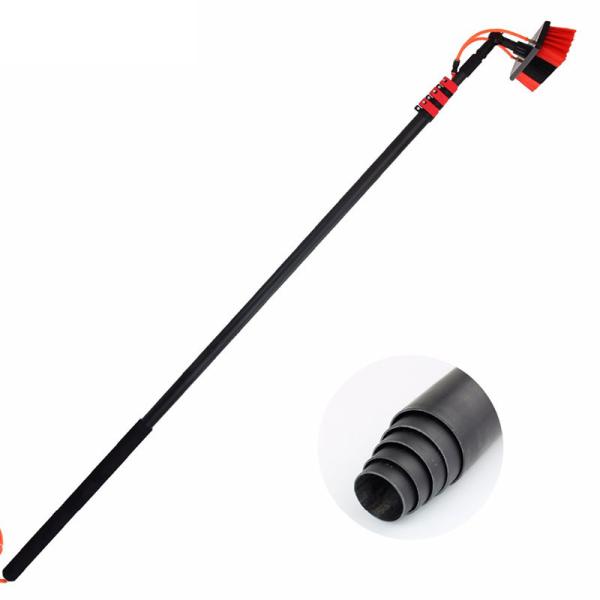

High-Level Water Fed Window Cleaning Poles Carbon Fiber Telescopic Tube

Lightweight and stiff carbon fiber telescoping tubes are ideal for creating adjustable poles, robotics, factory automation, or any other application where compact storage and long extension length are necessary.

The telescopic carbon fibre tubes are multiple-layered, unidirectional carbon fibre with an internal pull braided carbon fibre at 80° across the axis, and externally wound with a 37° double helix braid giving a smooth outer surface finish. This gives RBJ’s telescopic pull wound carbon fibre tubes a high performance with exceptional mechanical properties resistant to bending and torsional forces.

A composite tube is manufactured from two or more constituent materials. Individually, these materials have significantly distinctive properties. These properties could be either physical or chemical, and when these materials have been combined by the Composite Tubes manufacturer, the result is a composite material with characteristics unconventional to that of either of the individual components. The preference for composites comes down to several reasons. It could be their lower cost, or higher strength or even their lighter weight. One of the most primary applications for a Composite Tube is its use in structural purposes for buildings, bridges and construction.

Carbon Fiber Tubes Advantages

- High Strength, Light Weight, Strong and Durable
- Anti-Corrosion
- Low Thermal Expansivity
- Good Fatigue Resistance

Key Features Of The Telescopic Camera Pole

• Extremely Lightweight
• Integrated camera mount head
• Anti-pinch clamp
• Single person use
• High-quality Carbon Fibre shaft
• Super long reach

Specifications:

Product Knowledge
This telescopic rod is made of 100% carbon fiber for high stiffness, light weight, wear, and corrosion resistance. The telescopic rod consists of three sections, and the flexible design of the lock allows the user to adjust the length freely.

Application

With a standard locking cone and universal thread, these poles work with all Unger attachments and any attachments with a universal thread. When you connect a squeegee, scrubber, brush, or duster to one of our telescopic poles, you can clean hard-to-reach areas faster and more safely than cleaning with a handheld tool and ladder. Whenever there is a need for extended reach, whether inside or outdoors.

PRODUCT ADVANTAGES

• The original design of the pipe wall with grooves can prevent the telescopic pole from rotating during use.
• Enough height, flexible and durable product design provides a better product experience.
• The comfortable flip cam locking device can be locked at any working height, and it is very convenient to fold and unfold.
• We can provide a variety of customized services(color/size/attachment/package) to match your brand tone.
• Our supply/quality is very stable, the annual output of this extension pole can reach 0.2 million.

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.

‘Customers’ Persuit for Change, Lijin’s Motivation for Growth’, Shanghai Lijin takes customers’ demand for center, enhances the
customer satisfaction, and grows with customer.
