    High Precision Structural Carbon Fiber Tubes 180mm Diameter

    Ask Lasest Price
    Brand Name : Tanku
    Model Number : OEM
    Certification : SGS, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1500pcs month
    Delivery Time : 7 working days after receiving Order Pay
    • Product Details
    • Company Profile

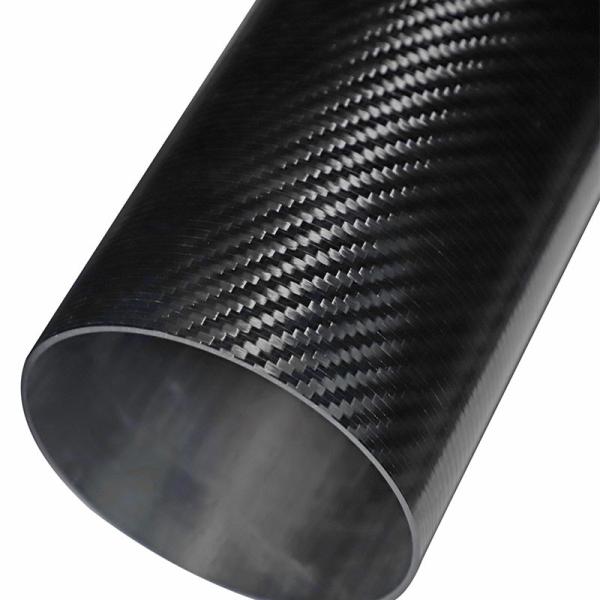

    High Precision Structural Carbon Fiber Tubes 180mm Diameter

    High Precision Diameter Structural 180MM Diameter Carbon Fiber Tubes


    Roll-wrapped prepreg carbon fiber tubes are constructed using multiple wraps of twill and/or unidirectional fabrics. Rolled tubes are ideal for applications that require the highest bending stiffness and lowest weight, such as automation robotics, telescoping poles, idler rollers, and UAV components. The standard finish is cello-wrapped gloss, but a smooth sanded finish is also available.


    Features:

    • Very precise, cylindrical, manufactured using prepreg wire-wrap process
    • Unidirectional fibre with glass scrim weave
    • Top layer carbon-roving visual structure - canvas
    • External diameter ground/smooth with diameter tolerance ± 0.1 mm
    • Surface smooth
    • Temperature-resistant up to 120°C
    • Outstanding bending resistance

    Performance


    Although specially laminated, ground, lacquered and polished to produce a carbon fibre tube with a stunning appearance, our 3K Woven Finish tubes are serious tubes suitable for demanding engineering applications including robotics/automation, R/C models, UAVs, recreational equipment, motorsport and marine.


    Application


    Carbon fiber tubes are widely used in aviation, space flight, automobile, toy, kites, pens, handicrafts, tent, windmills, umbrellas, each kinds of sports equipment and so on.


    Our Advantages

    1. Your kind inquiry will be replied to in 2 hours or 24 hours if time difference.
    2. Competitive prices are based on the same quality as we are a factory supplier.
    3. Samples can be made according to your requirements before placing an order.
    4. Updating the production schedule regularly.
    5. Guarantee samples quality same as the mass production.
    6. Positive attitude to custom design products.
    7. Well-trained and experienced staff can answer your questions fluently.
    8. Specialized team make us with strong support to solve your problems from purchase to application.
    Material3K Carbon Fibre Tube
    ShapeRound/Oval
    TechnologyRoll-wrapped or pultrusion
    DimensionThe existing inner diameter of the mold is 4mm-50mm with a length of 1m.
    Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
    SurfaceBlack glossy/matte surface/painted
    Glossy 3k weave/matte 3k weave
    Color metal wire weave
    Featurelightweight, high strength
    Working TemperatureUsually, -30-120 degrees, if special requirement, please let us know.
    Place Of OriginChina
    FunctionMarine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
    ToleranceDiameter Tolerance: +/-0.1mm
    Length Tolerance+/-1mm



    Our Service:

    1. It ensures that a year of quality assurance and 24 hours online customer service.
    2. Protection of your sales area, ideas of design, and all your private information.
    3. Request for samples is accepted.
    4. Drilling and slotting are accepted.
    5. We guarantee the products to be manufactured with the finest materials and mature technics.
    All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.

    FAQ:

    1. Can you produce according to the samples or drawings?
    Yes, we can produce your samples or technical drawings. We can create the molds and fixtures.

    2. What are your terms of payment?
    Usually, we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, balance before shipment.

    3. What is the lead time?
    It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    4. What are your terms of packing?
    Generally, we pack our goods in neutral cartons. It is fragile we will make the wooden frame. and we also can according to your requirements.

    5. What are your terms of delivery?
    We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost-effective for you.

    6. How to solve the quality problems after sales?
    Take photos of the problems and send them to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.

    7. Is it OK to print my logo on carbon fiber products?
    Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

    8. You are a manufacturer or trading company?
    We are a factory. Welcome to visit our factory at any time.
