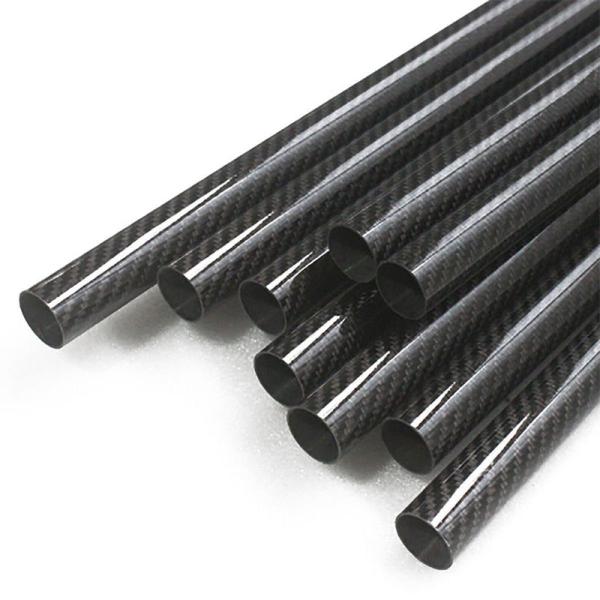

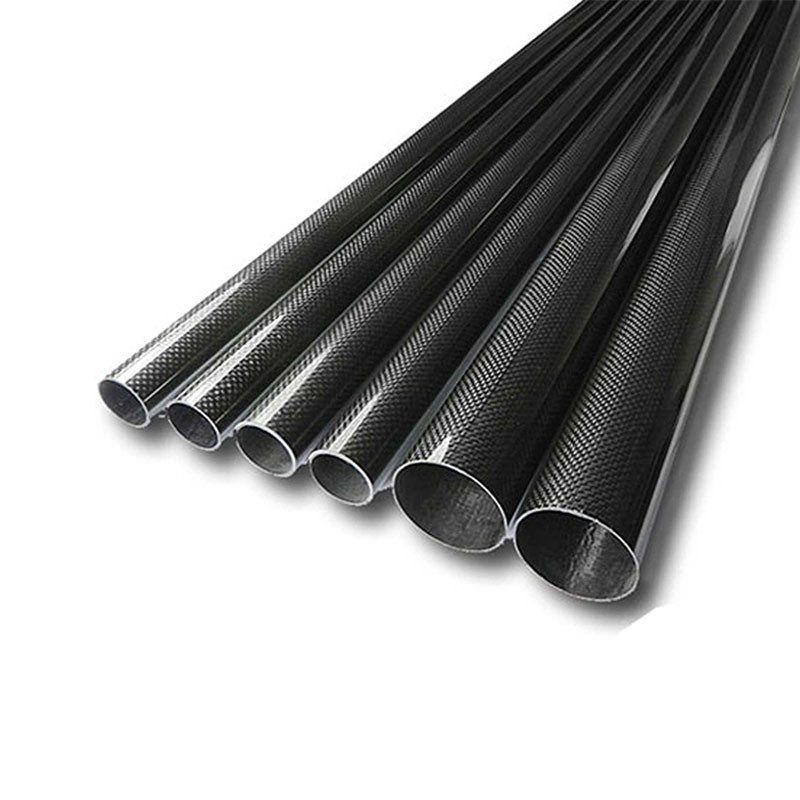

Light Weight Carbon Fiber Tube 3K with Twill Plain Woven Fabric

Carbon Fiber Tube 3K Description:

Carbon Fiber Tubes 3K are carefully hand-crafted using only the finest materials. Our production team offers superior craftsmanship with over 15 years of experience working with carbon fiber.

Every component is constructed with a consistent weave pattern. Our production processes allow exceptional carbon/resin ratio, creating high product stiffness that also leads to extra strength. For a stunning finish, our products are coated with a glossy clear coat that does not chip or flake. We meticulously inspect all of our components and stand firmly behind our products so that you can enjoy peace of mind with every genuine Carbon product.

Creating performance-oriented products that help shed unnecessary weight without sacrificing style is our specialty. Race after race, our products have proven to be as strong as the driver's ambition to win, thus making our Carbon the preferred brand among professional drivers.

High strength roll wrapped carbon fibre tube with a glossy, woven carbon fibre finish making them a great choice for a huge range of applications, lightweight structures, and much more.

Manufactured using alternating layers of high-strength unidirectional carbon fibre running lengthways down the tube for stiffness and at 90° around the tube to provide hoop strength and resilience to crushing, burst, and torsional loads. Externally the tube is finished with a smooth, UV stable clear coat showing off the classic appearance of its 2x2 twill woven carbon fibre outer layer.

Performance

Although specially laminated, ground, lacquered, and polished to produce a carbon fibre tube with a stunning appearance, our 3K carbon fibre tubes are serious tubes suitable for demanding engineering applications.

Specification:

Carbon Fiber Tube Applications:

Carbon fiber tubes can be used for many tubular applications. Some current common uses include:

• Robotics and Automation
• Telescoping Poles
• Metrology Instrumentation
• Idler Rollers
• Drone Components
• Telescopes
• Lightweight Drums
• Industrial Machinery
• Guitar Necks
• Aerospace Applications
• Formula 1 Race Car Components

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.

‘Customers’ Persuit for Change, Lijin’s Motivation for Growth’, Shanghai Lijin takes customers’ demand for center, enhances the
customer satisfaction, and grows with customer.
