    14x12x1000mm 3K CF Tube Carbon Fiber / Lightweight Fibre Tube 3K Roll Wrapped

    Ask Lasest Price
    Brand Name : Tanku
    Model Number : OEM
    Certification : SGS, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1500pcs month
    Delivery Time : 7 working days after receiving Order Pay
    • Product Details
    • Company Profile

    14x12x1000mm 3K CF Tube Carbon Fiber / Lightweight Fibre Tube 3K Roll Wrapped

    14x12x1000mm 3K CF Tube Carbon Fiber / Lightweight Fibre Tube 3K Roll Wrapped

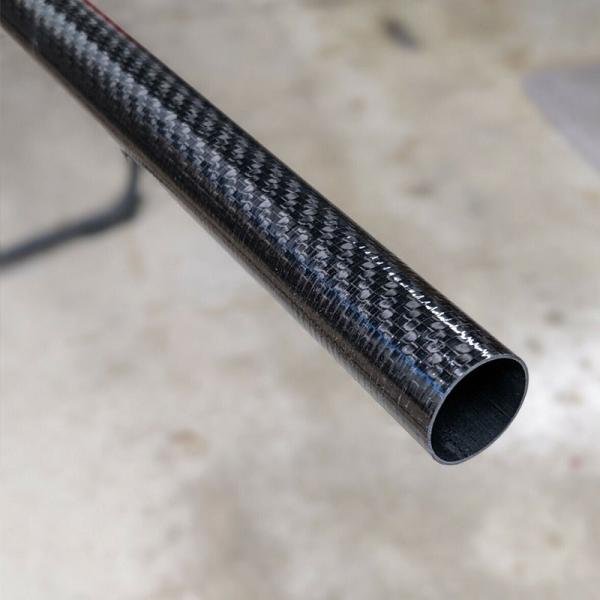

    3K Roll-wrapped Carbon Fiber Tube is a high-performance, lightweight, and corrosion-resistant tubing solution. 500mm long carbon fibre tube is ideal for a wide range of applications. Made from 3K carbon fibre. This tube boasts an exceptional strength-to-weight ratio, making it perfect for industries where weight reduction and increased performance are critical. 3K Pure Carbon Fiber is used for RC Quadcopter, Multicopter, Helicopter and Airplanes.


    The 3K High-Performance carbon fibre tubes are our range of 3K Woven Finish tubes with a stunning high-gloss / Matte woven carbon fibre finish to complement their incredible strength. With the classic appearance of 2/2 twill carbon fibre coupled with 100% roll-wrapped prepreg carbon fibre construction, these remarkable tubes look as good as they perform.


    This 3K Woven Finish tube is manufactured from alternating layers of unidirectional prepreg carbon fibre for maximum strength with the final layer swapped for 2/2 twill, 3K woven carbon fibre so that the tube has the classic appearance of woven carbon fibre. Although the tubes are designed for demanding mechanical applications, they also look fantastic, adding a cutting-edge carbon fibre appearance to any application.


    Features

    • 3K Roll-Wrapped Carbon Fiber Tube High strength-to-weight ratio for reduced Weight and Increased Performance.
    • Carbon fibre composite is Corrosion-resistant and chemical-resistant in harsh environments.
    • High-modulus carbon fibre is Lightweight and durable for an extended lifespan.
    • Roll-wrapped construction for improved strength and stability.

    A lightweight 3K carbon fibre tube is a cylindrical tube made from 3K carbon fiber fabric, which consists of 3,000 filaments per fiber bundle. These tubes are known for being lightweight, strong, stiff, and resistant to corrosion, making them ideal for high-performance applications.


    Common Applications

    • Drone frames and arms
    • Bicycle components
    • RC model parts
    • Robotics arms
    • Automotive and aerospace
    • Sporting goods (e.g., poles, paddles, fishing rods)
    TECHNICAL DATASHEET
    Manufacturing Method :
    Round Carbon Fiber Tube - By Roll Wrapping Process
    Custom Shape Carbon Fiber Tube - By Compression Moulding Process
    Structure
    UW
    U= Undirectional Prepreg
    W= Woven Prepreg
    Raw Materials :
    Carbon Fiber, Epoxy
    Diameter Range O.D.
    From 6mm O.D. to 300 mm
    Wall Thickness
    From 0.5mm to 20mm
    Length :
    From 0.05 Meters to 3.5 Meters
    Colors :
    Black Or Any Color from RAL ;
    Surface Treament :
    Matt Finish & Glossy
    Water Absorption
    < 1,5 w-%
    Denisty
    1.5g/cm3
    FIBER TYPE
    HS Carbon
    HM Carbon
    Stifiness
    90- 100 Gpa
    120-180
    Bending Strength
    >600 Mpa
    >500 Mpa
    Tensile Strength
    > 650 Mpa
    >550 Mpa
    Denisity
    > 1.5g/cm3
    >1.5g/cm3

    14x12x1000mm 3K CF Tube Carbon Fiber / Lightweight Fibre Tube 3K Roll Wrapped14x12x1000mm 3K CF Tube Carbon Fiber / Lightweight Fibre Tube 3K Roll Wrapped14x12x1000mm 3K CF Tube Carbon Fiber / Lightweight Fibre Tube 3K Roll Wrapped14x12x1000mm 3K CF Tube Carbon Fiber / Lightweight Fibre Tube 3K Roll Wrapped
