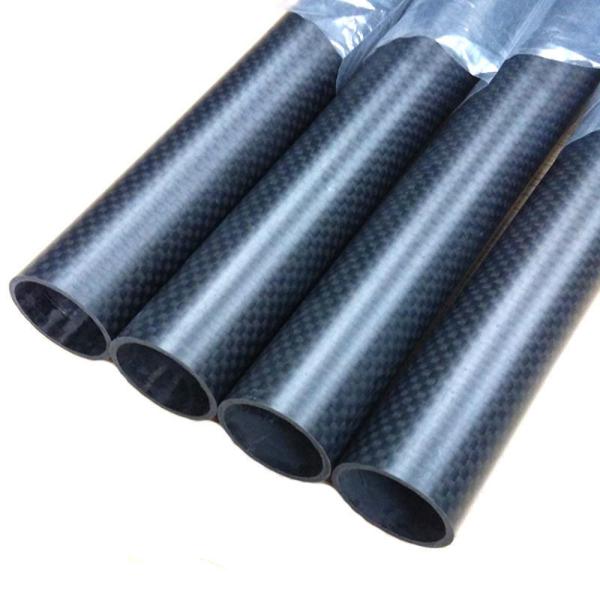

    High Resistance Lightweight Strong Custom 1K 3K Carbon Fiber Tubes

    Ask Lasest Price
    Brand Name : Tanku
    Model Number : OEM
    Certification : SGS, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1500pcs month
    Delivery Time : 7 working days after receiving Order Pay
    • Product Details
    • Company Profile

    High Resistance Lightweight Strong Custom 1K 3K Carbon Fiber Tubes

    High-Resistance Lightweight Strong Custom 1K 3K Carbon Fiber Tubes


    Custom carbon fiber tubes are designed and manufactured to meet specific requirements and applications, offering tailored solutions that standard, off-the-shelf tubes may not provide. Here's a detailed overview of custom carbon fiber tubes:


    Key Features and Benefits:


    • Tailored Dimensions: Custom tubes can be made to specific diameters, lengths, and wall thicknesses, ensuring a perfect fit for your application.
    • Optimized Performance: By customizing the layup schedule (the orientation and number of carbon fiber layers), you can optimize the tube for specific strength, stiffness, and weight requirements.
    • Material Selection: Choose from different grades of carbon fiber and resin systems to meet performance needs, environmental conditions, and cost constraints.
    • Surface Finish: Custom tubes can have different surface finishes, such as smooth, matte, glossy, or textured, based on aesthetic and functional needs.
    • Integration Features: Custom tubes can include integrated features such as threaded inserts, bonded joints, and other connection points for easier assembly and integration into larger systems.

    Customization Options:

    • Diameter and Length: Specify the exact outer and inner diameters, as well as the length of the tube.
    • Wall Thickness: Choose the wall thickness to balance weight and strength requirements.
    • Layup Schedule: Customize the orientation and number of carbon fiber layers to achieve the desired mechanical properties.
    • Resin System: Select from various resin systems, including epoxy, vinyl ester, and others, based on performance and environmental needs.
    • Surface Finish: Opt for a specific surface finish to meet aesthetic or functional requirements.
    • Additional Features: Integrate threaded inserts, bonding areas, or other connection points as needed.

    Feature

    High Tensile Strength/ LowWeight/ Excellent Structural Properties/ Low Density

    Resin

    Epoxy Resin

    Weaving

    3K Plain/ Twill/ Unidirectional

    OD Range

    5mm-100mm

    Length

    Cut at any size according to the requirement

    Finish

    Glossy/ Matte/50% Glossy

    Color

    Customized Color

    ODM/OEM Services

    Bonding, drilling, punching, assembling with other materials, and precision CNC cutting are also available.

    Applications

    Sailing, Yacht, Sports Equipment, Telecommunications, Drones, Intelligent Industrial Robot, New-energy Car.....


    What are carbon fiber tubes used for?


    Carbon fiber tubes are used in a wide range of applications, including tactical ladders, systems, rods, and beams. Carbon fiber provides low weight, and better mechanical properties over conventional materials like aluminum, and steel.


    Are carbon fiber tubes strong?


    Carbon fiber tubes are used in numerous applications like tactical ladders, trusses, beams, and more. Carbon fiber is typically chosen over traditional materials such as aluminum, steel, and titanium because of the following properties: High strength and stiffness to weight.


    Do carbon fiber tubes bend?


    Our carbon fiber tubing is built using a thermoset epoxy resin. This means that once cured the epoxy never returns to a liquid state. If you tried to bend our tubing it would break with enough applied force but it will not bend. Carbon fiber/epoxy composite is very stiff!
