    Outstanding Strength, Durability 3K Twill Carbon Fiber Round Tube Roll Wrapped Tubing

    Ask Lasest Price
    Brand Name : Tanku
    Model Number : OEM
    Certification : SGS, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1500pcs month
    Delivery Time : 7 working days after receiving Order Pay
    • Product Details
    • Company Profile

    Outstanding Strength, Durability 3K Twill Carbon Fiber Round Tube Roll Wrapped Tubing

    Outstanding Strength, Durability 3K Twill Carbon Fiber Round Tube Roll Wrapped Tubing

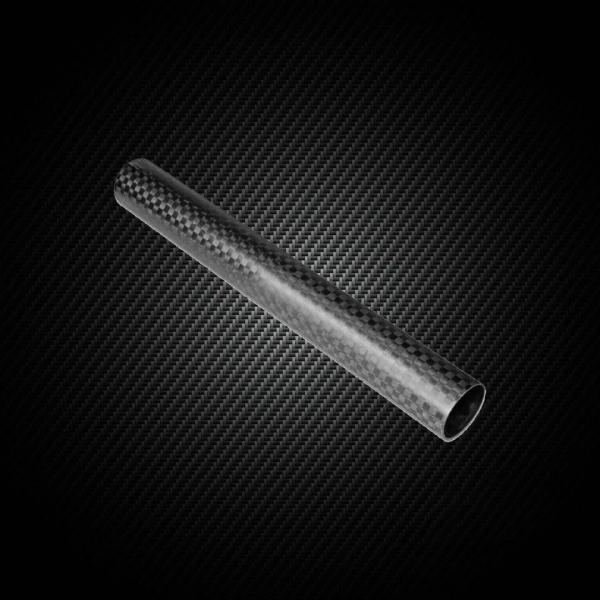

    Our twill round carbon fiber tube is roll-wrapped from unidirectional carbon fiber with a 3k twill carbon fiber fabric outer layer. They not only offer a beautiful surface but also excellent torsional characteristics, as well as crush strength, and are ideal for high torque applications. This round tubing is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential and appearance is also important.


    Our roll-wrapped carbon tubes come in various diameters, lengths, and thicknesses, If you want to buy a large-diameter carbon fiber tube or any other specific carbon fiber tube, do not hesitate to contact us, we can custom carbon fiber tube for you.


    What carbon fiber tube you can buy from us?


    LIJIN manufacturing and wholesale multiple finishes with standard modulus carbon fiber tubes offer excellent strength and stiffness, it is 1.5X stiffer than aluminum and is the most economical grade composite tube. Finishes available be twill gloss and twill matte.


    How to make carbon fiber tubing?


    Our carbon fiber round tube is rolled unidirectional carbon fiber fabric into a mandrel, and roll wrapped a 3k finish fabric exterior. Unidirectional carbon fiber is the structural backbone of all our tubes, the 3k fabric weave that gives carbon fiber tubes their traditional ”carbon fiber look” is only the outside layer and helps with durability. Usually, any wall thickness can be made by changing the number of layers or combining different prepreg thicknesses (usually 0.15mm- 0.25mm thick per layer), Our round tubes typically use layups designed for optimal performance in a wide range of conditions. We use 100% pure carbon fiber materials making carbon fiber tubing in a wide variety of diameters and lengths. Common diameter includes 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm carbon fiber tube, ... 40mm carbon fiber tube, our round tube standard length is 1000mm, If you need a carbon fiber tube with other lengths or diameters, or need colored carbon fiber tube, do not hesitate to contact us, we can cut and custom carbon fiber tubes to your specified.


    Product Name

    Carbon Fiber Tube

    Material

    100% Carbon Fiber

    Color

    Black or custom

    Surface

    Matt/Glossy

    Size

    Custom thickness and length

    Fiber Specifications

    1K/3K/12K

    Weaving Style

    Plain/Twill

    Fiber Type

    1. Carbon fiber+carbon fiber
    2. Carbon fiber+ glass fiber
    3. Carbon fiber+aramid fiber


    Application

    1. Aerospace, RC model parts Helicopters Model
    2. Manufacture fixtures and tooling
    3. Industrial automation and robotics
    4. Sports equipment
    5. Musical instruments
    6. Scientific Apparatus
    7. Medical device
    8. Others

    Our Product

    Carbon fiber tube, carbon fiber plate, carbon fiber profiles.


    Carbon fiber tube stock.


    Even LIJIN is a carbon fiber tube factory, we don’t really “stock” tubing. There are so many different wall thicknesses and length options that most tubes are custom-built for the application. What we do consider stock, is carbon fiber tubing sizes that we already have a mandrel for (tooling). After picking a mandrel, we will engineer a laminate and build the tubes to your specs. Your order can usually be accomplished in about a week.


    How to work with us?


    If you want to get our carbon fiber tube price, please include ID, OD, length, dimensional tolerances, quantity, structural requirements, surface finish, surface pattern, material (if you know), temperature requirements, processing technology, etc. According to these points, we can easily and quickly quote you the price.


    Service

    • Customization – Prepreg plies can readily be added or subtracted allowing the tube to be customized with different wall thicknesses
    • Sample Acceptable – Because each tube is made one at a time, small production runs are available.
    • CNC Machining — cutting according to your CAD drawing
    • Print Logo – according to the AI file
    • One- Stop Procurement – a whole industry chain of carbon fiber composite products
