Carbon Fiber Tubing - 16mm x 14mm x 500mm - 3K Roll Wrapped 100% Carbon Fiber Tube Glossy

SHANGHAI LIJIN IMP.&EXP. CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Carbon Fiber Tubing - 16mm x 14mm x 500mm - 3K Roll Wrapped 100% Carbon Fiber Tube Glossy from wholesalers

    Buy cheap Carbon Fiber Tubing - 16mm x 14mm x 500mm - 3K Roll Wrapped 100% Carbon Fiber Tube Glossy from wholesalers
    • Buy cheap Carbon Fiber Tubing - 16mm x 14mm x 500mm - 3K Roll Wrapped 100% Carbon Fiber Tube Glossy from wholesalers
    • Buy cheap Carbon Fiber Tubing - 16mm x 14mm x 500mm - 3K Roll Wrapped 100% Carbon Fiber Tube Glossy from wholesalers
    • Buy cheap Carbon Fiber Tubing - 16mm x 14mm x 500mm - 3K Roll Wrapped 100% Carbon Fiber Tube Glossy from wholesalers
    • Buy cheap Carbon Fiber Tubing - 16mm x 14mm x 500mm - 3K Roll Wrapped 100% Carbon Fiber Tube Glossy from wholesalers

    Carbon Fiber Tubing - 16mm x 14mm x 500mm - 3K Roll Wrapped 100% Carbon Fiber Tube Glossy

    Ask Lasest Price
    Brand Name : Tanku
    Model Number : OEM
    Certification : SGS, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1500pcs month
    Delivery Time : 7 working days after receiving Order Pay
    • Product Details
    • Company Profile

    Carbon Fiber Tubing - 16mm x 14mm x 500mm - 3K Roll Wrapped 100% Carbon Fiber Tube Glossy

    Carbon Fiber Tubing - 16mm x 14mm x 500mm - 3K Roll Wrapped 100% Carbon Fiber Tube Glossy

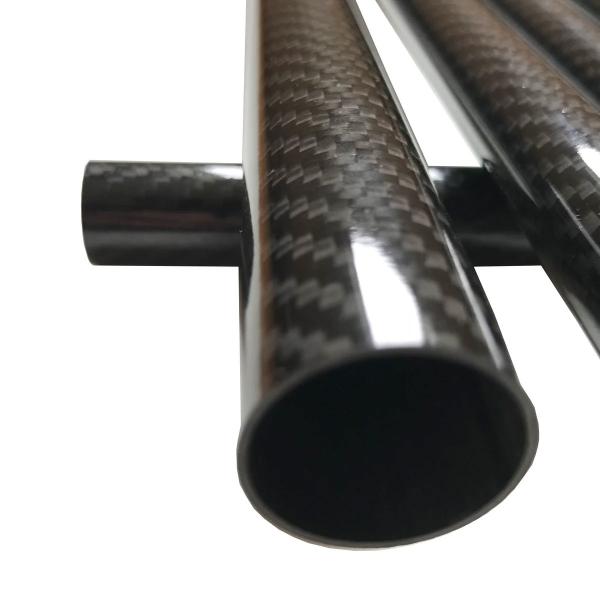

    Carbon Fiber Tubing - 14mm x 16mm x 500mm. 3K Tow - Twill weave, glossy surface. Super high-strength tubing. Outer Wall (16mm), Inner Diameter (14mm), Wall thickness (1mm), Length (500mm).


    A 100% 3k carbon fiber tube is manufactured by wrapping unidirectional carbon fiber prepreg tape around a mandrel with the majority, but not all, of the carbon fiber running longitudinally. This type of construction offers a higher strength-to-weight ratio than is available in pultruded tubes. Typically used where thin-walled, lightweight tubes are required to provide additional torsional stiffness and high strength.


    Carbon fiber tubes can be used to replace or substitute aluminum or steel tubes in a wide range of projects. Their superior mechanical properties mean that tubes of the same weight as an aluminum or steel tube can be much stronger, or that tubes of the same strength can be much lighter.


    About this item

    • High-Performance Carbon Fiber Tube: Made from advanced carbon fiber materials, this carbon fiber tube has exceptional lightweight properties and high strength, providing an excellent performance base for a variety of projects.
    • Versatile Design: Suitable for a wide range of applications, including model building, robot frames, aviation models, etc. Its versatile design and high rigidity make it an ideal choice for creative and engineering projects.
    • PRECISION CRAFTSMANSHIP - Produced through precision manufacturing processes, ensuring consistent quality for each carbon fiber tube. High manufacturing standards ensure dimensional accuracy, meeting the requirements of professional and DIY projects.
    • EASY TO TREAT AND INSTALL - Thanks to its advanced material, this carbon fiber tube is easy to cut, drill and process. Users can customize it effortlessly and the simple installation process requires no complex tools.
    • DURABLE Aesthetics: Featuring the unique modern appearance of carbon fiber, combined with exceptional durability to withstand daily wear and tear and environmental factors. This carbon fiber tube is the preferred choice of consumers who prioritize both aesthetics and performance.
    MaterialCarbon Fiber Tubing
    ShapeRound/oval
    TechnologyRoll-wrapped or pultrusion
    DimensionThe existing inner diameter of the mold is 4mm-50mm with a length of 1m.
    Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
    SurfaceBlack glossy/matte surface/painted
    Glossy 3k weave/matte 3k weave
    Color metal wire weave
    Featurelightweight, high strength
    Working TemperatureUsually, -30-120 degrees, if special requirement, please let us know.
    Place Of OriginChina
    FunctionMarine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
    ToleranceDiameter Tolerance: +/-0.1mm
    Length Tolerance+/-1mm

    Carbon fibre tubes can be used to replace aluminium or steel tubes in a wide range of projects. The Carbon fibre tube of the same weight as an aluminum or steel tube can be much stronger and lighter. Roll-wrapped carbon fibre tubes offer superior strength in general use to pultruded tubes (which have all their fibres running in exactly the same direction.


    The use of unidirectional fibres and maximum strength in the lateral axis does mean that the tube is not strong across its diameter as it is along its length so should be used in such a way as to avoid unnecessary crushing forces across the tube.


    Roll Wrapping:


    The phrase roll wrapped refers to the process used to manufacture these tubes. The prepreg carbon fibre is first laid up around a mandrel in multiple layers. Once the reinforcement is in place it is spiral-wrapped with heat-shrink tape before the whole assembly is oven cured.


    Quality Carbon Fiber Tubing - 16mm x 14mm x 500mm - 3K Roll Wrapped 100% Carbon Fiber Tube Glossy for sale
